Tolerances for radial spherical plain bearings　

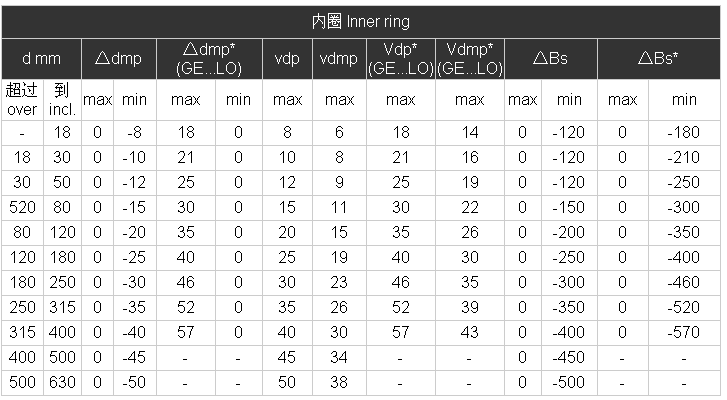

1>. Tolerances for radial spherical plain bearings(except for series PB...,GEBJ...S)

 The deviations in the columns with symbol*apply to spherical plain bearings of series GE…LO.

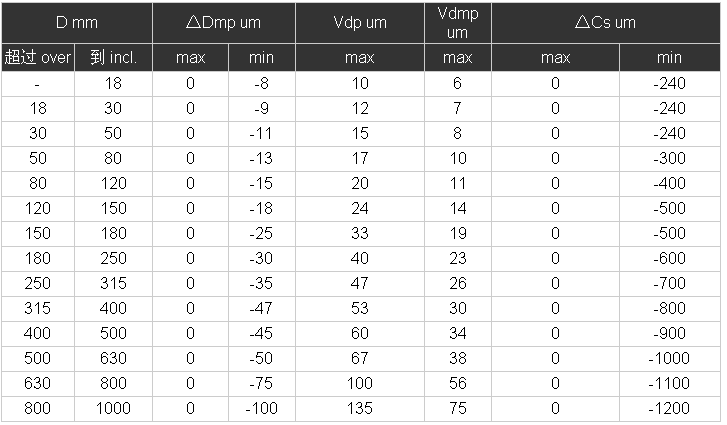

 Outer ring

2>.Tolerances for series PB…

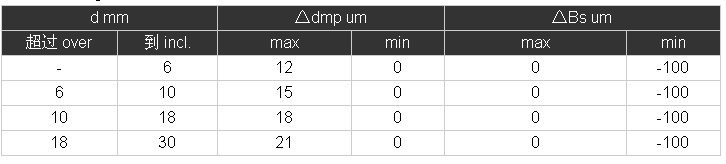

Inner ring

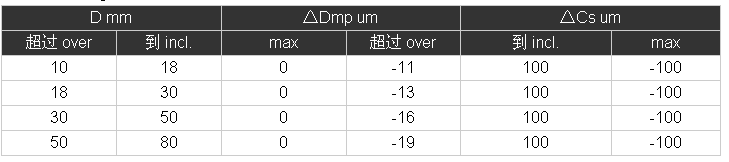

Outer ring

3>. Tolerances for series GEBJ...S,

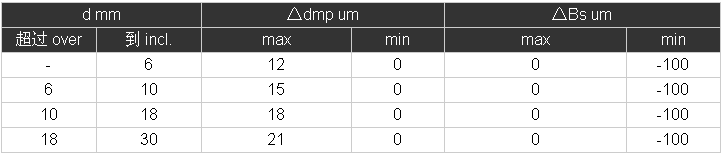

 Inner ring

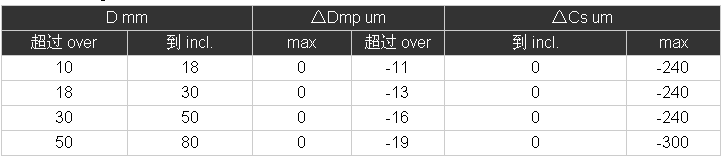

Outer ring

The symbols of dimension and tolerance
d: Bearing bore diameter, nominal.
△dmp: Single plane mean bore diameter deviation.
Vdp: Bore diameter variation in a single radial plane.
Vdmp: mean bore diameter variation.
△Bs: Deviation of a single width of the inner ring.
B: Width of inner ring, nominal.
D: Bearing outside diameter, nominal.
△Dmp: Single plane mean outside diameter deviation.
VDp: Outside diameter variation in a single radial plane.
VDmp: Mean outside diameter variation.
△Cs: Deviation of a single width of the outer ring.
C: Width of ourer ring, nominal.
△Ts: Actual deviation of width of the angular contact spherical plain bearing.
△Hs: Actual deviation of height of the spherical plain thrust bearing.
hs,△h1s: Center height deviation of rodends or ball joint rod ends.
